Modular CAMAC Crates

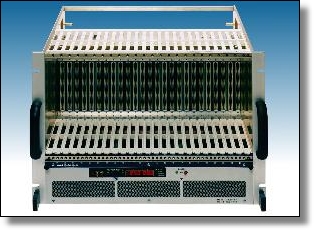

WIENER 19" CAMAC crate
Modular 7U CAMAC Crate with fan tray unit UEL 02M


Modular designed CAMAC crates in excellent and proofed W-IE-NE-R quality, conforming EUR4100 and CERN specifications

Rigidly constructed CAMAC bins:

  • 7U bin UEC 01 for 25 CAMAC slots with 2U space for fan tray, heavy duty construction
  • multilayer CAMAC dataway, noise reduced design, current rails up to 100A
  • dimensions: 19" x 7U (310mm) x 525mm (550mm deep with inserted power supply)

Various fan tray units:

  • simplified UEL 01 with 3 AC-fans, 3 status LED´s and test sockets for all voltages
  • standard UEL 02 with 3 DC-fans, 4 status LED´s and voltage and current display
  • intelligent UEL 03 with 3 DC-fans (variable fan speed), 3 status LED´s and alpha-numeric display/diagnostic system, optional interface for crate remote control

Wide Range of Power Supplies(CERN monitoring on request):

  • linear regulated power supplies UEP 21 (200W), UEP 22(300W), UEP 10 (500W) and UEP 10 (M) 55 (650W)
  • PS336 series switched power supplies 1000W ... 1650W designed in ultra low-noise technology
  • CE versions with improved AC wiring

Power Supply Power Outputs Power Application
+6V / -6V +12V / -12V +24V / -24V
UEP 21 8A / 8A 3A / 3A 2A / 2A linear 200W NIM/CAMAC
UEP 22 15A / 15A 3A / 3A 3A / 3A linear 300W NIM/CAMAC
UEP 10 (M) 40A / 40A 4A / 4A 4A / 4A linear 500W NIM/CAMAC
UEP 10 (M) 55 40A / 40A 4A / 4A 8A / 8A linear 650W NIM/CAMAC
PS336 H 65A / 65A - 10A / 10A switch. 1250W CAMAC
PS336 H12 65A / 65A 10A / 10A 10A / 10A switch. 1500W CAMAC
PS336 VH 80A / 80A - 10A / 10A switch. 1400W CAMAC
PS336 VH12 80A / 80A 10A / 10A 10A / 10A switch. 1650W CAMAC
