V693 Cables and Adapters / Connectors.
Situation as of September 2001 at Pole.


  Steffen's mail on the v693-adapter situation.
Currently, 6 spare adapters are at Pole, including one "bad"..

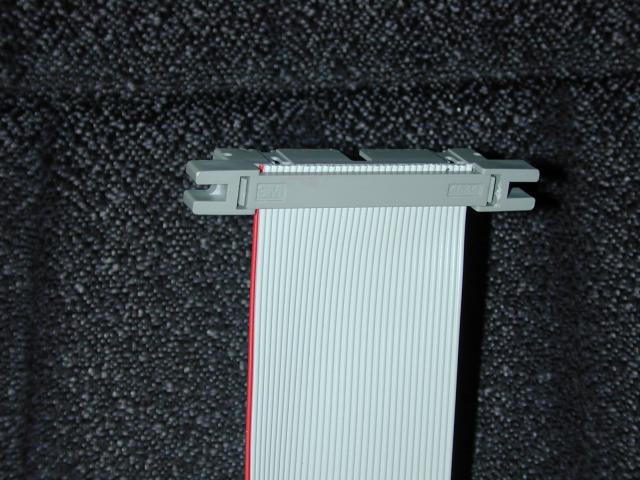

1. The Adapter cables.






































2. The Good vs bad (Adapter cables).

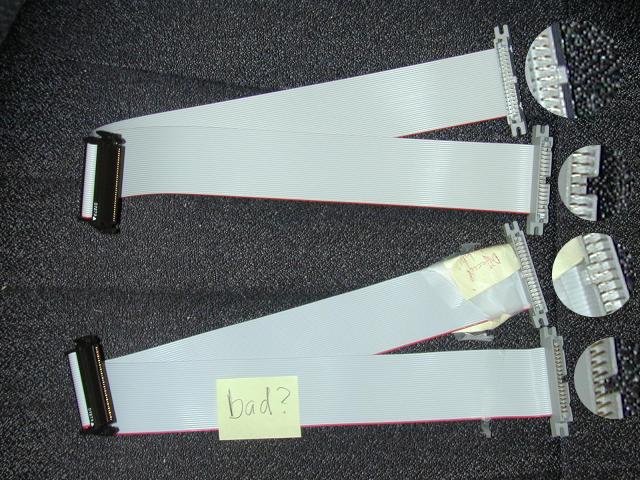

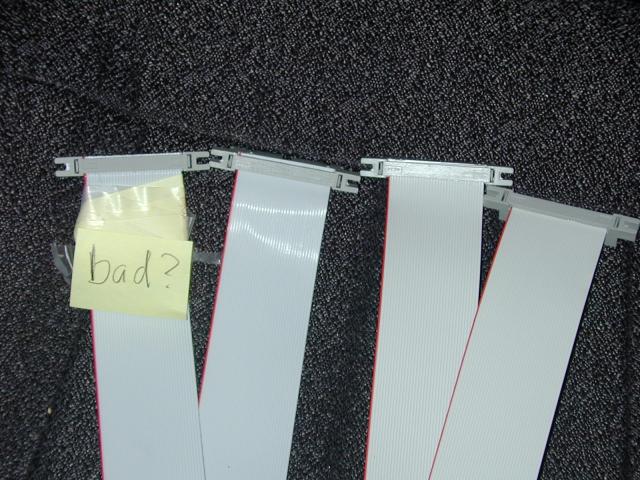

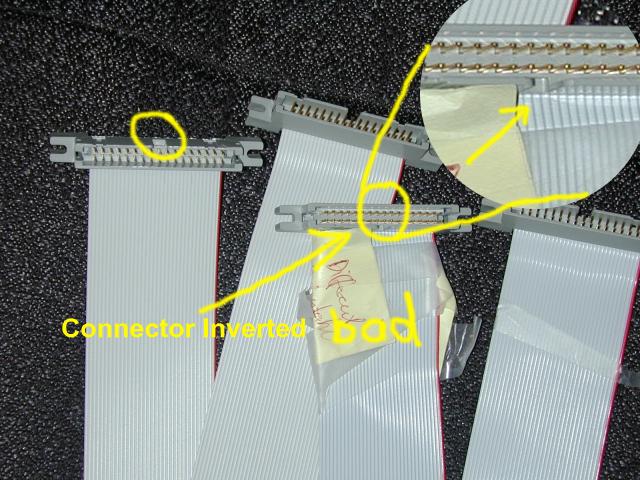

For the bad cable: You see one of the 34-pin connectors is inverted (the upper one).
Pin 1 of Connector is not on the red wire.

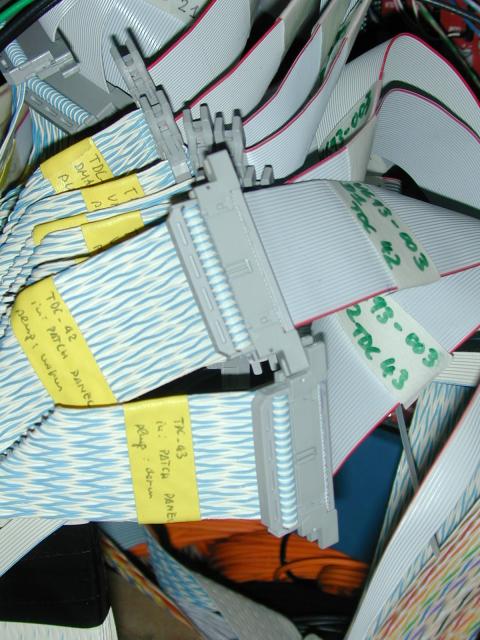

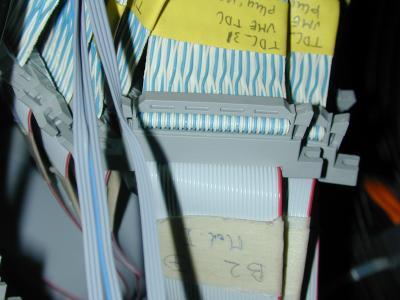

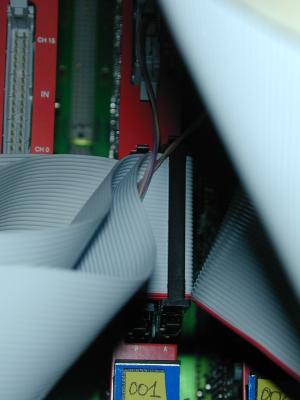

3.The Rack situation.
